Description
Versatility meets performance

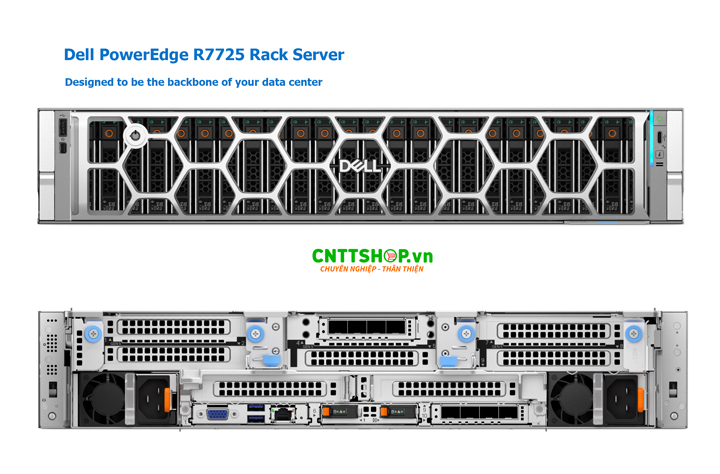

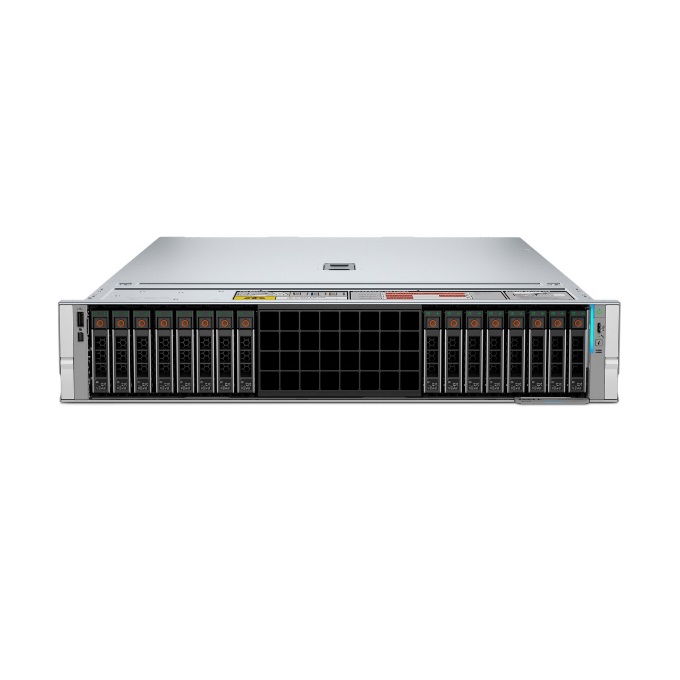

The PowerEdge R7725 is a highly scalable two-socket, 2U rack server packed with 50% more cores and up to 2x DW or up to 6x SW GPUs in a package that combines powerful performance and flexible configuration. Ideal for traditional and emerging workloads, including big data analytics, AI/ML and high-performance compute (HPC).
- Two AMD EPYC™ 5th gen processors with up to 192 cores
- Available with air-cooled configurations
- Low-latency storage options
- Up to 24x DDR5 RDIMMs (6 TB max)
Key Features and Specifications:
- Processors: Up to two 5th Generation AMD EPYC 9005 Series processors, with up to 192 cores per processor.
- Memory: 24 DDR5 DIMM slots, supporting RDIMM with a maximum of 6TB and speeds up to 6400 MT/s.
- Storage:
- Front bays for 2.5″ or 3.5″ drives.
- Various configurations with options for SAS/SATA and NVMe drives.
- Internal Controllers: PERC H965i, H975i, H365i.
- Front bays for 2.5″ or 3.5″ drives.
- Networking:
- Embedded NIC: 1 Gb dedicated BMC Ethernet port.
- Optional OCP NIC 3.0 cards with various speeds (10GbE, 25GbE, 100GbE, 400GbE).
- PCIe Add-in Card (AIC) NIC options: 100 GbE and 400GbE, NDR VPI (400GbE), FC 32 / 64.
- Embedded NIC: 1 Gb dedicated BMC Ethernet port.
- Expansion:
- Up to eight PCIe slots.
- Two OCP NIC 3.0 slots.
- Up to eight PCIe slots.
- Cooling: Air cooling and Direct Liquid Cooling (DLC) options.
- Power Supplies: Platinum and Titanium options available, ranging from 800W to 3200W.
- Embedded Management: iDRAC 10, iDRAC Direct, iDRAC RESTful API with Redfish, Racadm CLI, and Quick Sync 2 wireless module.
- Security: AMD Secure Encrypted Virtualization (SEV), Secure Boot, System Lockdown, and more.
- Dimensions: 86.8 mm (3.42 inches) in height, 482 mm (18.98 inches) in width, and 802.4 mm (31.59 inches) with bezel, or 801.51 mm (31.55 inches) without bezel in depth.
- Form Factor: 2U rack server.
