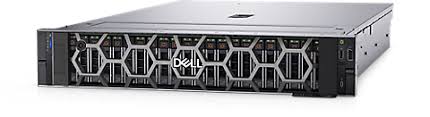

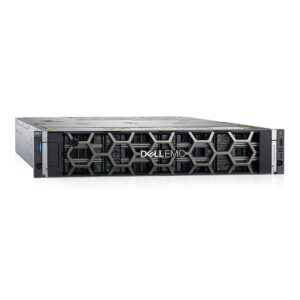

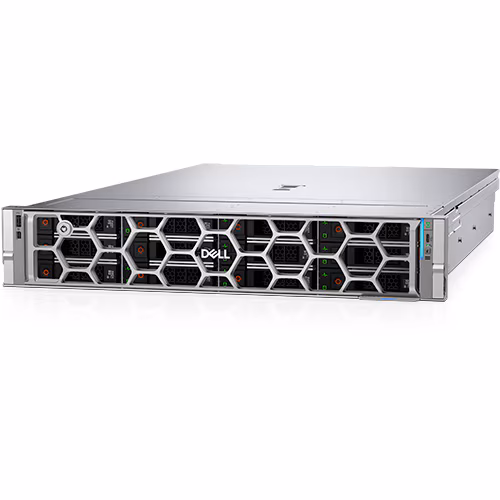

Name: Dell PowerEdge R570 Rack Server
Brand: Dell
SKU: 3MI-LPT-P5540
Availability: InStock

Description

Purpose-built to boost data center productivity

The Dell PowerEdge R570 is a 2U, one-socket rack server engineered for high-performance computing with exceptional power efficiency and balanced performance, driving cost savings and boosting data center productivity. Its advanced design maximizes rack utilization by offering more cores in a single socket enabling better performance in a smaller footprint while minimizing energy consumption. This makes it ideal for workloads like virtualization, scale-out database, medium VM density or VDI, and software-defined storage node.

• Purpose-built to scale infrastructure to adapt seamlessly to technological changes, integrating new capabilities that support long-term growth and innovation.
• Powered by Intel^® Xeon^® 6 processors designed to meet diverse performance and efficiency requirements and offered with advanced GPU support.
• Enhanced I/O flexibility with optional front I/O configuration for seamless cold aisle serviceability.
• Energy-efficient designs with Smart Power and Cooling deliver cost savings and peak performance.
• Configurable to suit diverse needs with industry standard open designs (DC-MHS) compliance.

Key Specifications:

Form Factor: 2U rack server.
Processor:
- One Intel Xeon 6 E-core processor with up to 144 cores.
- One Intel Xeon 6 P-core processor with up to 86 cores (with R1S option).
Memory: Up to 16 DDR5 DIMM slots, supporting speeds up to 6400 MT/s.
Storage:

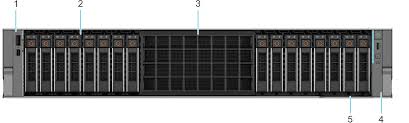

- Front bays: Up to 8 x EDSFF E3.S Gen5 NVMe, or 8 x 2.5-inch NVMe (SSD) RAID, or 8 x 2.5-inch NVMe (SSD), or 8 x 2.5-inch SAS/SATA (HDD/SSD), or 12 x 3.5-inch SAS (HDD) RAID, or 16 x 2.5-inch SAS/SATA (HDD/SSD) RAID.

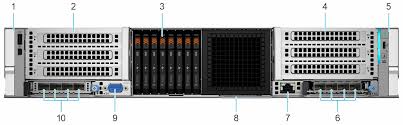

- Rear bays: Up to 4 x EDSFF E3.S Gen5 NVMe.
Networking:
- OCP NIC card 3.0: Two slots on the front or two slots on the rear.
- Dual 100GbE Broadcom BCM57508 OCP 3.
Management: iDRAC 10 for embedded management at the server.
Power: Redundant AC or DC power supplies (800W or 1100W, Platinum/Titanium).
Operating System: Supports various OS options including Ubuntu Server LTS, Red Hat Enterprise Linux, and others.
Security: Features like cryptographically signed firmware, data at rest encryption (SEDs with local or external key management), and secure boot.

Additional Details:

The server supports a variety of storage controllers, including PERC H365i DC-MHS Front and PERC H965i DC-MHS Front.
Optional features include a security bezel, and various rack support options (ReadyRails II or Combo rails).
The server supports up to 4 x 75W SW accelerators.
It is designed for both cold-aisle and front I/O configurations
