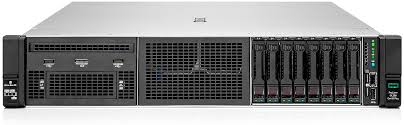

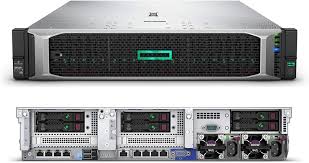

Discover the Hewlett Packard Enterprise Proliant DL380 Gen10, a 2U rack-mountable server engineered for superior performance and flexibility. This model, SKU# 875764-S01, is designed to meet the demanding needs of modern IT environments.

Central Processing Unit (CPU)

• Type: Intel Xeon Gold 6148
• Speed: 2.4 GHz with Max Turbo Speed up to 3.7 GHz
• Cores: 20-core, Dual CPU support
• Socket: FCLGA3647
• Chipset: Intel C621
• Key Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory

• Installed Cache Size: 55 MB L3 Cache
• Cache Per Processor: 27.5 MB

Memory Specifications

• Standard: 64 GB
• Maximum Supported: 768 GB
• Technology: DDR4 SDRAM
• Memory Speed: Effective Speed of 2666 MHz
• Form Factor: DIMM 288-pin
• Configuration: 4 x 16 GB modules
• Supported RAM: PC4-20800 up to 1.5 TB Load-reduced

Storage Controllers

• Type: RAID Controller
• Interface: SATA 6Gb/s / SAS 12Gb/s
• Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2 GB

Graphics and Display

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• External Bays: 1 (total), 1 (free)
• Hot-Swap Bays: 8 x 2.5″ SFF
• CPU Slots: 2 (total), 0 (free)
• DIMM Slots: 24 (total), 20 (free)
• FlexibleLOM Slot: 1 (total), 1 (free)
• PCIe Slots:
  • 2 x PCIe 3.0 x16 (Half-length, Full-height)
  • 4 x PCIe 3.0 x8 (Half-length, Full-height)
• MicroSD Card Slot: 1 (total), 1 (free)

Interfaces

• 4 x LAN (Gigabit Ethernet) – RJ-45
• 1 x HP iLO – RJ-45 (Rear)
• 1 x VGA (Rear)
• 8 x SATA-600 / SAS 3.0
• 1 x HP iLO – Type A (Front)
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Additional Information

• HPE Easy Install Rails
• 6 x Standard Hot Plug Fans
• High-performance Heatsink

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Program

• HPE Smart Buy

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Physical Dimensions

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs
