Description
Tech Specs
PERFORMANCE
Processor
- Intel® Xeon® Silver 4510 Processor (2.40 GHz, up to 4.10 GHz with Turbo Boost, 12 Cores, 24 Threads, 30 MB Cache)
- Intel® Xeon® Silver 4410T Processor (2.70 GHz, up to 4.00 GHz with Turbo Boost, 10 Cores, 20 Threads, 26.25 MB Cache)
- Intel® Xeon® Gold 5416S Processor (2.00 GHz, up to 4.00 GHz with Turbo Boost, 16 Cores, 32 Threads, 30 MB Cache)
- Intel® Xeon® Gold 5415+ Processor (2.90 GHz, up to 4.10 GHz with Turbo Boost, 8 Cores, 16 Threads, 22.5 MB Cache)
- Intel® Xeon® Gold 5418Y Processor (2.00 GHz, up to 3.80 GHz with Turbo Boost, 24 Cores, 48 Threads, 45 MB Cache)
- Intel® Xeon® Gold 5420+ Processor (2.00 GHz, up to 4.10 GHz with Turbo Boost, 28 Cores, 56 Threads, 52.5 MB Cache)
- Intel® Xeon® Silver 4410Y Processor (2.00 GHz, up to 3.90 GHz with Turbo Boost, 12 Cores, 24 Threads, 30 MB Cache)
- Intel® Xeon® Silver 4416+ Processor (2.00 GHz, up to 3.90 GHz with Turbo Boost, 20 Cores, 40 Threads, 37.5 MB Cache)
- Intel® Xeon® Gold 6416H Processor (2.20 GHz, up to 4.20 GHz with Turbo Boost, 18 Cores, 36 Threads, 45 MB Cache)
- Intel® Xeon® Gold 6418H Processor (2.10 GHz, up to 4.00 GHz with Turbo Boost, 24 Cores, 48 Threads, 60 MB Cache)
- Intel® Xeon® Gold 6430 Processor (2.10 GHz, up to 3.40 GHz with Turbo Boost, 32 Cores, 64 Threads, 60 MB Cache)
- Intel® Xeon® Gold 6438Y+ Processor (2.00 GHz, up to 4.00 GHz with Turbo Boost, 32 Cores, 64 Threads, 60 MB Cache)
- Intel® Xeon® Gold 6442Y Processor (2.60 GHz, up to 4.00 GHz with Turbo Boost, 24 Cores, 48 Threads, 60 MB Cache)
- Intel® Xeon® Gold 6444Y Processor (3.60 GHz, up to 4.00 GHz with Turbo Boost, 16 Cores, 32 Threads, 45 MB Cache)
- Intel® Xeon® Gold 6530 Processor (2.10 GHz, up to 4.00 GHz with Turbo Boost, 32 Cores, 64 Threads, 160 MB Cache)
- Intel® Xeon® Gold 6534 Processor (3.90 GHz, up to 4.20 GHz with Turbo Boost, 8 Cores, 16 Threads, 22.5 MB Cache)
- Intel® Xeon® Gold 6542Y Processor (2.90 GHz, up to 4.10 GHz with Turbo Boost, 24 Cores, 48 Threads, 60 MB Cache)
- Intel® Xeon® Gold 6544Y Processor (3.60 GHz, up to 4.10 GHz with Turbo Boost, 16 Cores, 32 Threads, 45 MB Cache)
- Intel® Xeon® Gold 6548Y+ Processor (2.50 GHz, up to 4.10 GHz with Turbo Boost, 32 Cores, 64 Threads, 60 MB Cache)
- Intel® Xeon® Platinum 8468 Processor (2.10 GHz, up to 3.80 GHz with Turbo Boost, 48 Cores, 96 Threads, 105 MB Cache)
- Intel® Xeon® Platinum 8490H Processor (1.90 GHz, up to 3.50 GHz with Turbo Boost, 60 Cores, 120 Threads, 112.5 MB Cache)
- Intel® Xeon® Platinum 8568Y+ Processor (2.30 GHz, up to 4.00 GHz with Turbo Boost, 48 Cores, 96 Threads, 300 MB Cache)
- Intel® Xeon® Platinum 8570 Processor (2.10 GHz, up to 4.00 GHz with Turbo Boost, 56 Cores, 112 Threads, 300 MB Cache)
- Intel® Xeon® Platinum 8580 Processor (2.00 GHz, up to 4.00 GHz with Turbo Boost, 60 Cores, 120 Threads, 300 MB Cache)
- Intel® Xeon® Platinum 8592+ Processor (1.90 GHz, up to 3.90 GHz with Turbo Boost, 64 Cores, 128 Threads, 320 MB Cache)
Operating System
- Windows 11 Pro for Workstations
- Linux Ubuntu
Graphics
- NVIDIA® T400 4GB GDDR6
- NVIDIA® T1000 8GB GDDR6
- NVIDIA® RTX™ A400 4GB GDDR6
- NVIDIA® RTX™ A1000 8GB GDDR6
- NVIDIA® RTX™ A5500 24GB GDDR6
- NVIDIA® RTX™ A5000 24GB GDDR6
- NVIDIA® RTX™ 2000 Ada Generation 16GB GDDR6
- NVIDIA® RTX™ 4000 Ada Generation 20GB GDDR6
- NVIDIA® RTX™ 4500 Ada Generation 24GB GDDR6
- NVIDIA® RTX™ A5000 Ada Generation 32GB GDDR6
Memory
Up to 16 DDR5 DIMM (8 DIMMs per CPU, 8 memory channels per CPU) 64GB DDR5 ECC 3DS-RDIMM PC5-4800 or 128GB DDR5 ECC RDIMM PC5-5600
Available configurations:
- Up to 1024 GB DDR5-4800MHz (RDIMM, ECC)
- Up to 2048 GB DDR5-5600MHz (RDIMM, ECC)
Storage
Up to 9 drives in total:
- Supports up to 7 maximum, 4TB M.2 NVMe PCIe SSD
- Supports up to 2 maximum, 12TB 3.5″ SATA 7200rpm
Up to 7 drives in total:
- Supports up to 3 maximum, 4TB M.2 NVMe PCIe SSD
- Supports up to 4 maximum, 12TB 3.5″ SATA 7200rpm
Available configurations:
- Up to 28 TB SSD M.2 2280 PCIe Gen4 Performance TLC Opal
- Up to 28 TB SSD M.2 2280 PCIe Gen5 Performance TLC Opal
- Up to 24 TB 7200rpm HDD 3.5″ SATA Enterprise
RAID
- M.2 = 0 / 1 / 10 / 5
- SATA = 0 / 1 / 10 / 5
Audio
Realtek®
CONNECTIVITY
Ports / Slots
Front:
- Headphone / mic combo
- 2 x USB-A (USB 10Gbps, 1 always on)
- 2 x USB-C® (USB 10Gbps)

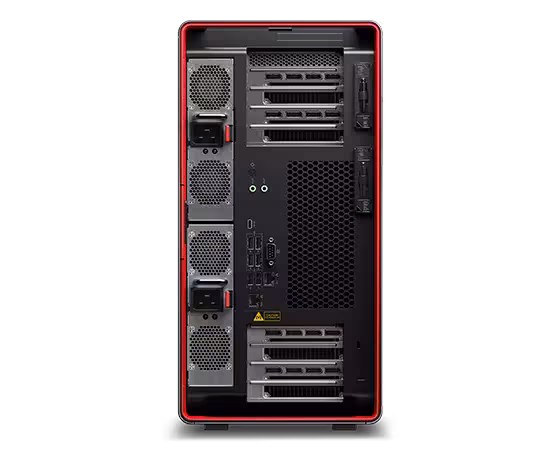

Rear:
-
- USB-C® (USB 20Gbps)
- 4 x USB-A (USB 5Gbps)
- 2 x USB 2.0 (Hi-Speed USB)
- 2 x Ethernet (RJ45, 1 x 1Gbps, 1 x 10Gbps)
- Line in
- Line out
Optional Rear:
- Serial
USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.
Network
Onboard Ethernet:
- Aquantia 10 GbE AQC113C-B1-C
- Intel® Ethernet Connection I219-LM
- Supports wake-on LAN
Optional Ethernet:
- Intel® I210-T1 Single Port Gigabit Ethernet Adapter
- Intel® I350-T2 Dual Port Gigabit Ethernet Adapter
- Intel® I350-T4 Quad Port Gigabit Ethernet Adapter
- Realtek RTL8168H PCIe 1000M Ethernet Controller
- Broadcom BCM5720 Dual-Port Ethernet Adapter
- Broadcom BCM5719 Quad-Port Ethernet Adapter
Optional WLAN:
- Intel® WiFi 6E AX210 (2x2ax)*
- Bluetooth® 5.3
* 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.
** Internal WiFi Antenna built into chassis
